Take care of your body to take care of your life

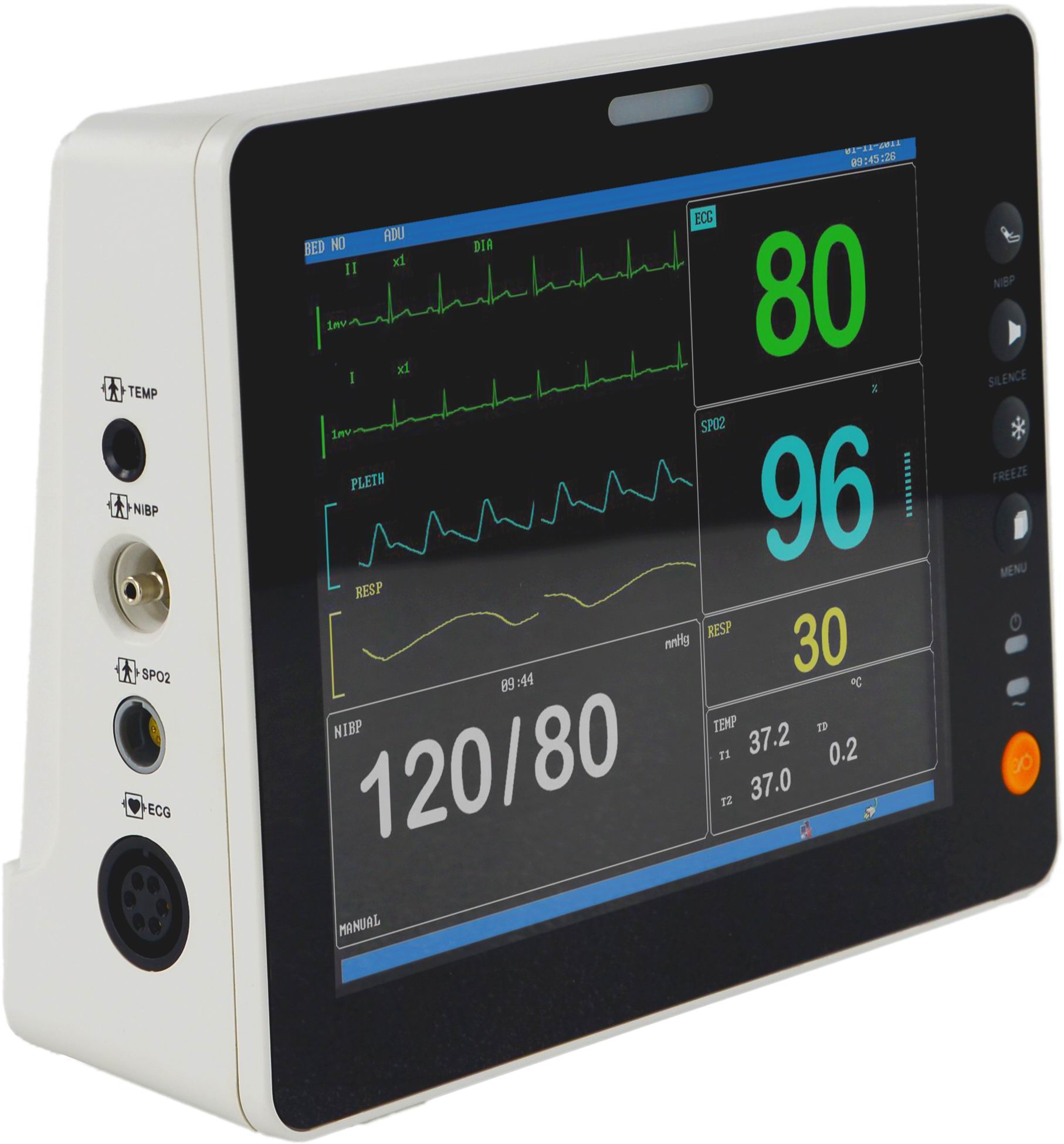

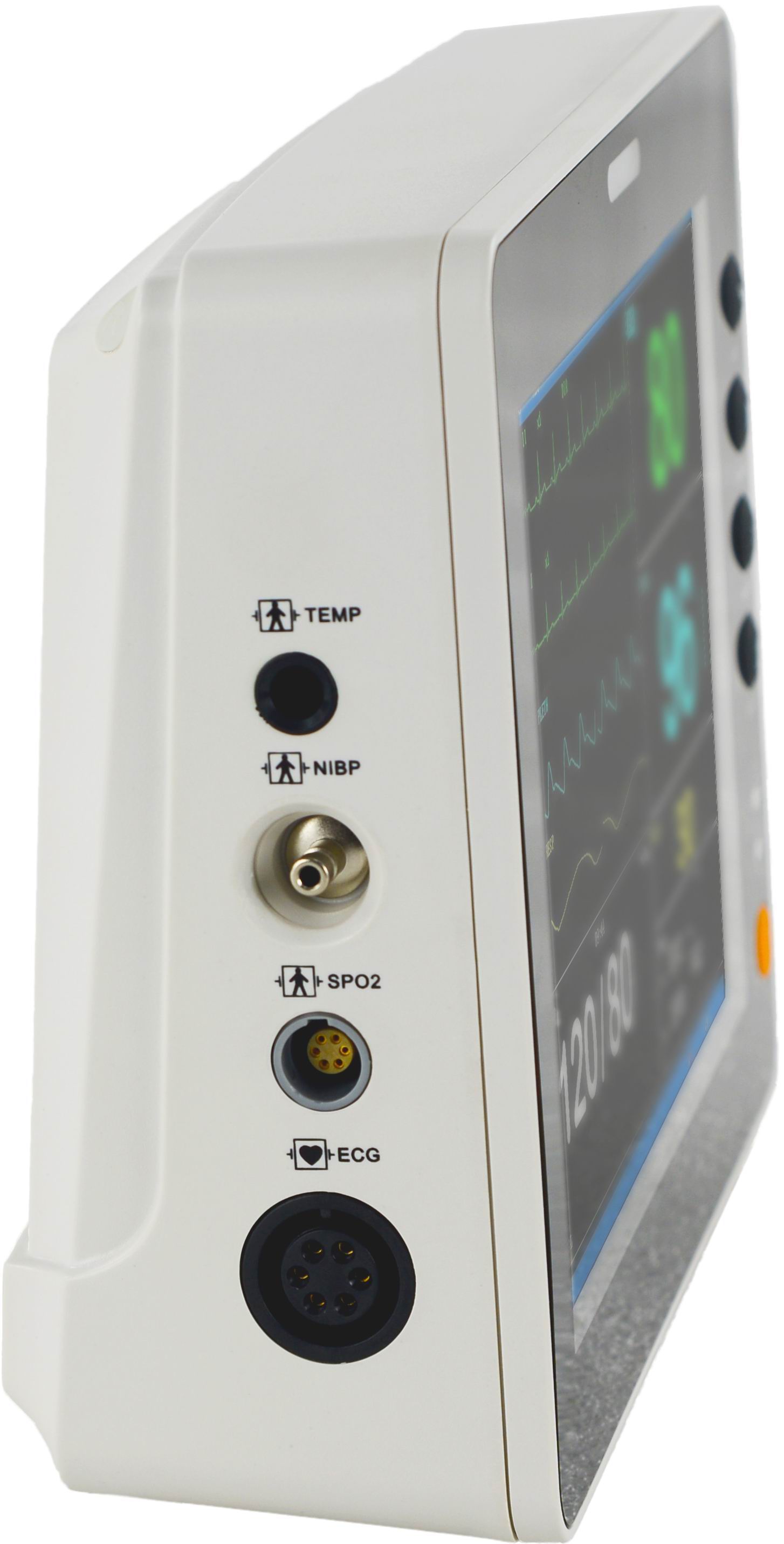

healthcaremonitor MODLE:HDS1014
1.With an 8-inch TFT true-color high-resolution LCD screen to display the patient's electrocardiogram waveform, respiratory waveform, and pulse oxygen curve.
2.Real-time detection of battery remaining capacity; when the power is insufficient, a low voltage alarm prompt is displayed.
3.Full lead electrocardiogram monitoring with a screen freeze function.
4.Functions include heart rate, body temperature, pulse oxygen saturation, respiratory rate, non-invasive blood pressure trend statistics, and trend data.
5.Capable of storing and replaying electrocardiogram waveform data, heart rate values, body temperature, pulse oxygen saturation, and respiratory rate.
6.Rich alarm upper and lower limit settings with a built-in thermal array recorder for outputting parameter information.
7.High-precision non-invasive blood pressure measurement module with high accuracy, good repeatability, and a unique pulse oxygen saturation measurement device.
8.Operating models: Diagnosis, monitoring, surgery.
9.Five lead wires: RA, LA, RL, LL, V.
10.Measurement modes: Adult/Child/Newborn.
monitormonitor

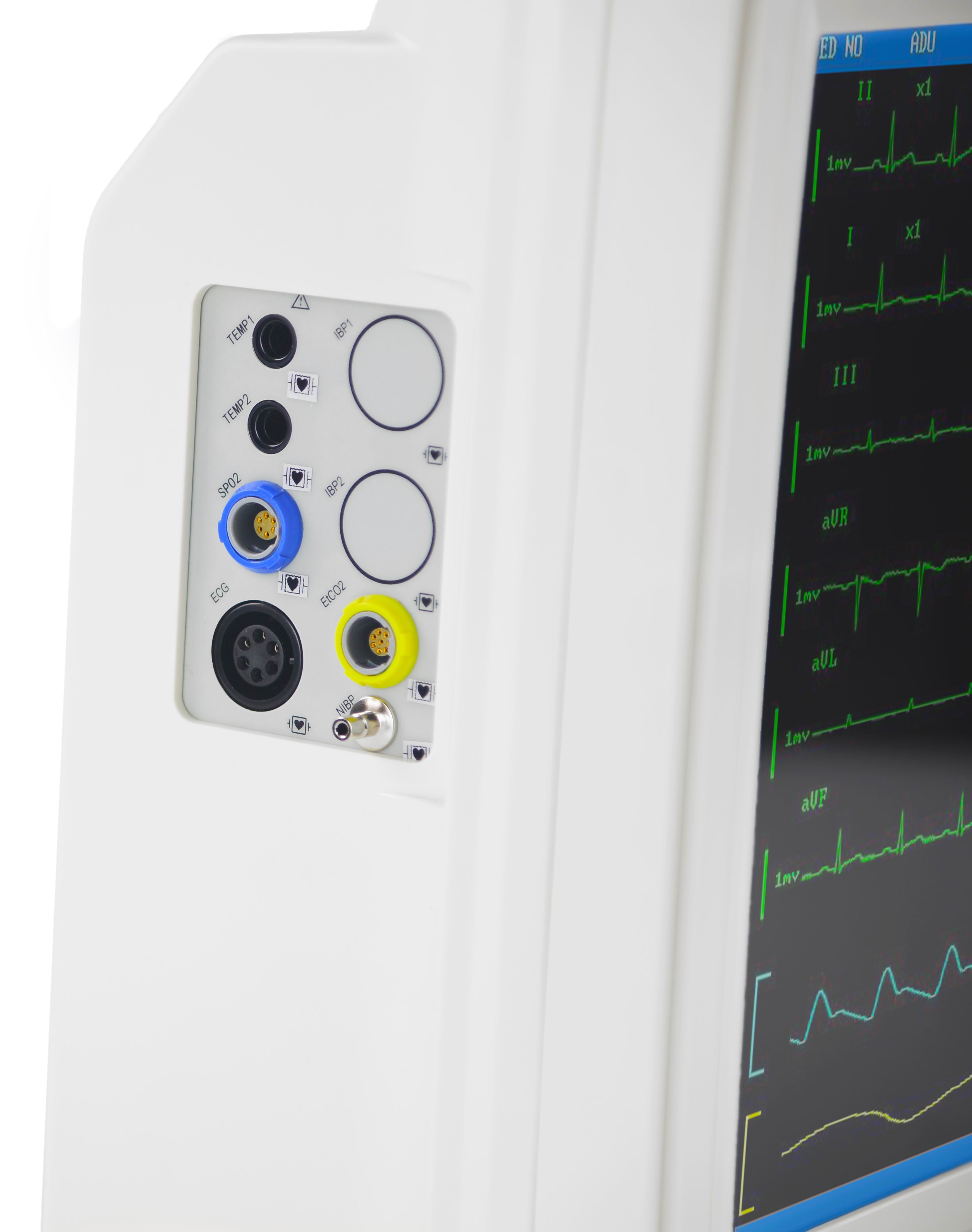

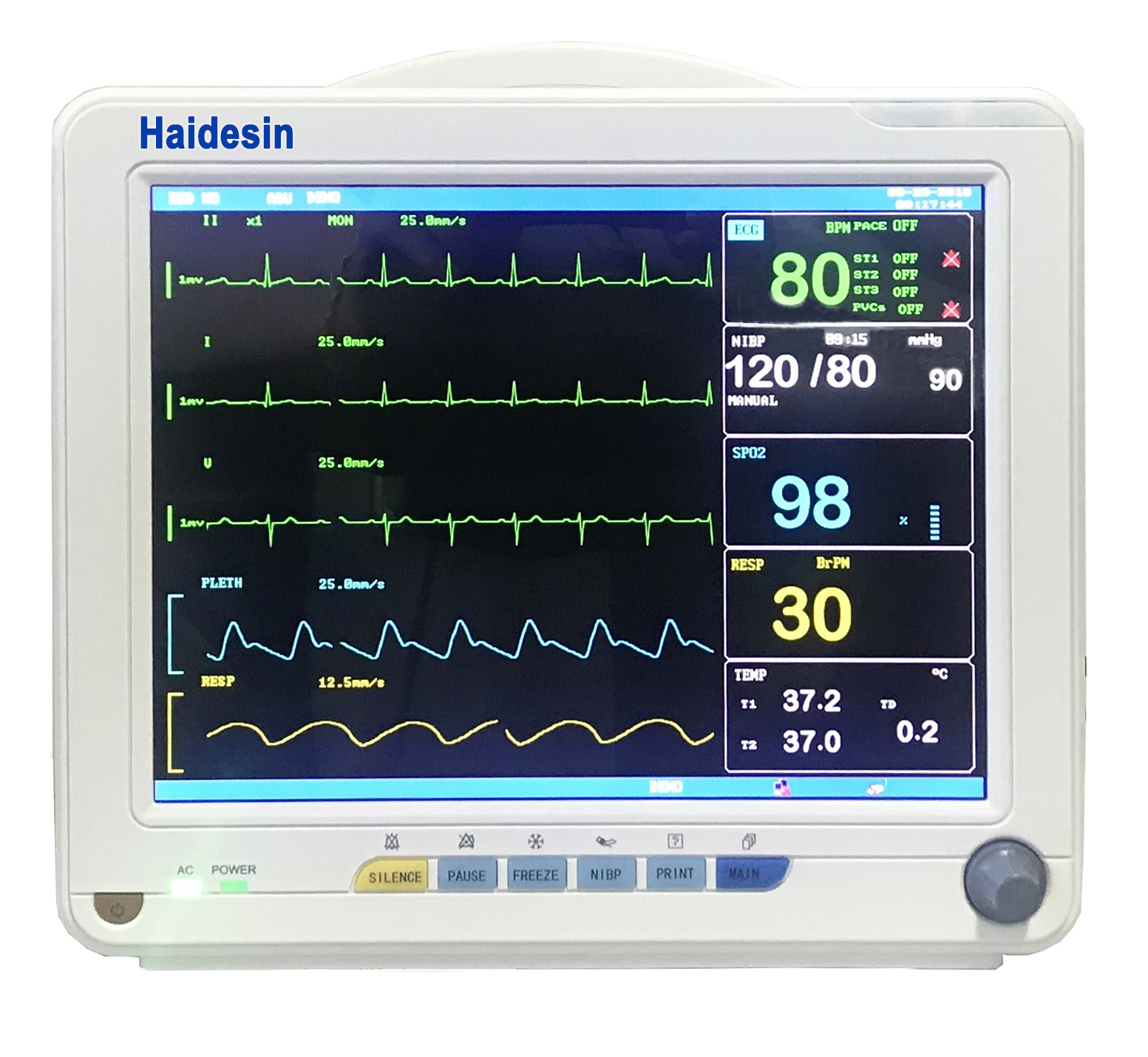

MODLE:HDS1016


1.The 12.1-inch TFT LCD screen displays the patient's electrocardiogram waveform, respiratory waveform, and pulse blood volume curve.

2.Bilingual operation system in Chinese and English is optional.

3.Statistical functions for heart rate, body temperature, pulse blood oxygen saturation, and respiratory rate.

4.Optional end-tidal carbon dioxide module to monitor end-tidal carbon dioxide values and inhalation volume for patients.

5.Real-time detection of remaining battery power, with a low-voltage alarm prompt when the battery is running low.

6.Features waveform freeze, review, and trend observation functions.

7.A unique pulse blood oxygen saturation measurement device ensures more accurate measurements of pulse blood oxygen saturation values and pulse rate values.

8.Optional built-in recorder for outputting waveform and text information.

9.Includes demonstration and power failure storage functions.













monitor
